| Brand Name: | Dimax |
| Model Number: | 150 non thermal break series Three-track Sliding Door |
| MOQ: | 1 |
| Price: | 800-1200rmb |
| Delivery Time: | 45 |
| Payment Terms: | L/C,T/T |
INFORMATION
| System | 150 non thermalbreak series casement door |
| Brand | DIMAX |
| Material | 6063-T5 |
| Certification | AS2047 |
| Glass | Single-pane glass, laminated glass, double-layer tempered glass, tempered laminated glass, triple-layer tempered glass |
| Powder-coat | Interpon, Dulux and so on (warranty treatment 10/20 years) |
| Hardware | KIN LONG,BONWAY,Doric and so on |
| Configuration | Single door, double door, door with sidelight |
| Flyscreen | Fiberglass/Stainless steel available |
| Fixing Method | Sub sill/Sub head/Finx fix/Face fix/Timber reveal available |
| Air Infiltration | 75pa |
| Design Wind Pressure | 2000pa |
| Water Resistance | 600Pa |
| Ufimate Wind Pressure | 2800pa |
| Insulative Effectiveness | Configure according to the project requirements |
| soundlnsulafion | Configure according to the project requirements |

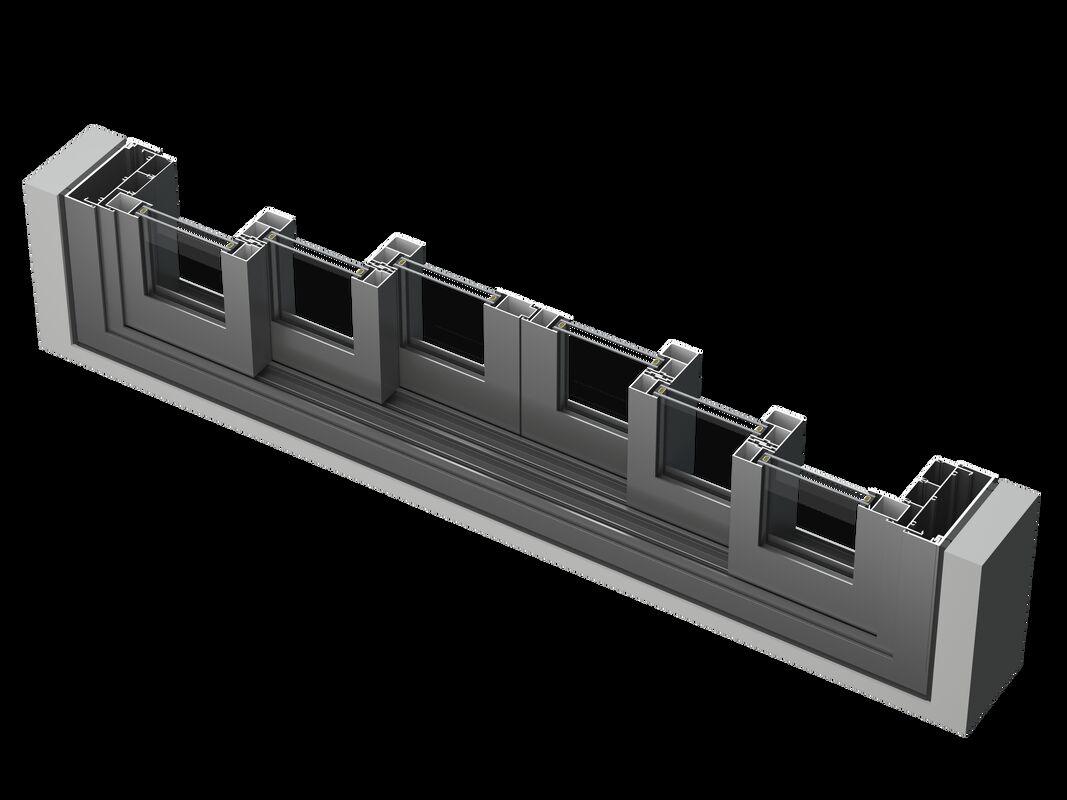

We deeply understand the complex needs of modern architecture for spatial versatility and dynamic partitioning. The 150 Series Three-Track Sliding Non-Thermal Break Door and Window System provides customizable dynamic spatial solutions for commercial spaces, large residential units, and public buildings through innovative triple-track design and high-strength non-thermal break aluminum structures. The system utilizes topologically optimized multi-chamber extruded aluminum profiles, whose cross-sectional stiffness is 40% higher than traditional dual-track systems, achieving stable support and precise sliding control for extra-wide spans while maintaining the cost-effectiveness of the non-thermal break structure.
The core technology of the system is reflected in the triple independent load-bearing tracks and intelligent load distribution mechanism: the central track ensures main structural positioning, while the dual-side tracks enable synchronous or asynchronous sliding; each track is equipped with dual-row ceramic bearing pulley sets, ensuring smooth and silent movement even when single-panel loads reach up to 400 kg; the sealing system adopts a three-barrier air-pressure balance design, addressing both extreme weather protection and daily ventilation needs; the ultra-narrow frame with a visible width compressible to 38mm, combined with concealed drainage channels, expands the lighting area while maintaining structural integrity. We offer modular configurations from fixed units to movable combinations, supporting multi-panel linkage, independent opening/closing, and smart electrification integration, with customizable track curvature, opening angles, and collision buffer systems based on project requirements.
Choosing the 150 Series Three-Track Sliding Non-Thermal Break Door and Window System represents engineering ingenuity that transcends traditional spatial boundaries—through precise structural calculations and human-centered operational design, it achieves a perfect balance of architectural aesthetics, functional flexibility, and 30-year maintenance-free longevity in scenarios requiring dynamic spatial transformation, such as museum exhibition halls, hotel banquet halls, and corporate headquarters glass curtain walls.
